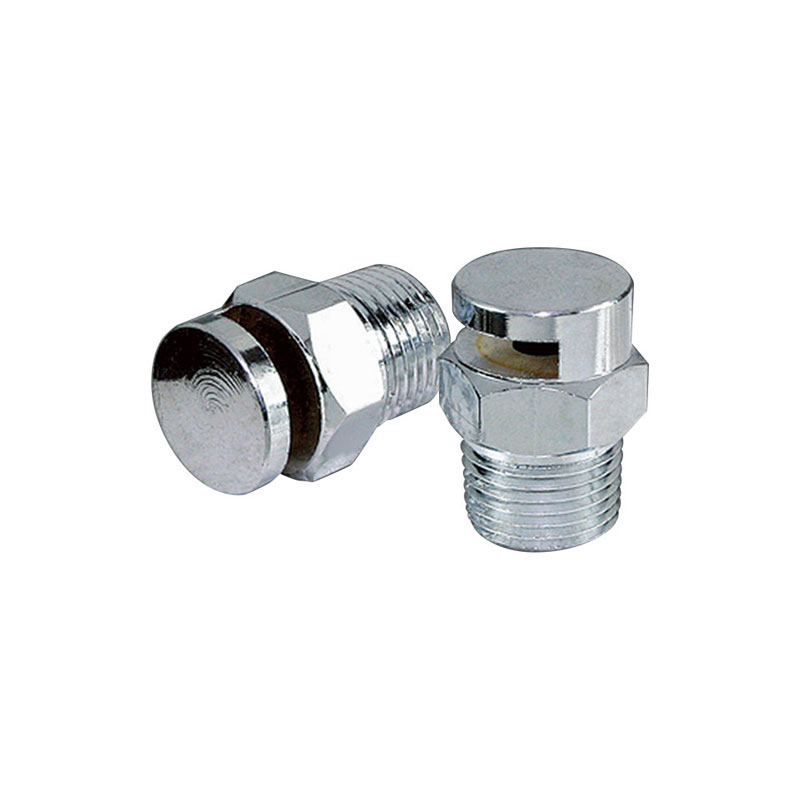

Water curtain nozzle ZSTMA

Model specification	Size(mm)	Flow Coefficient	Spray angle(°)	Take over thread
ZSTMA21-140	25×28×35	21	140±10	R 1/2
ZSTMA42-140	30×34×30	42	140±10	R 3/4

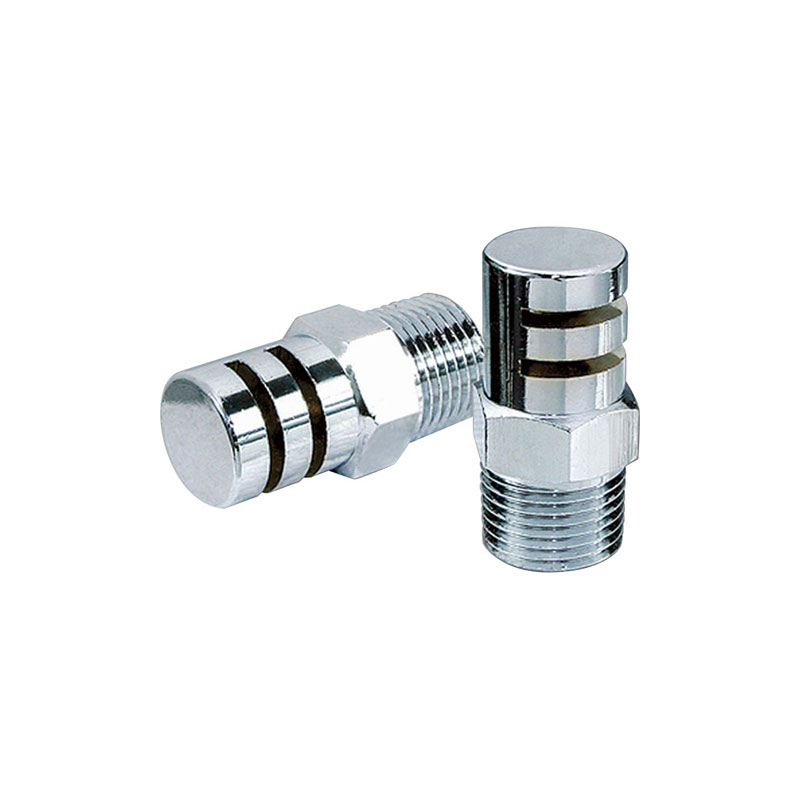

Water curtain nozzle ZSTMB

Model specification	Size(mm)	Flow Coefficient	Spray angle(°)	Take over thread
ZSTMB18-160	25×28×32	18	160±10	R 1/2
ZSTMB28-160		28
ZSTMB45-160		45
ZSTMB90-160	30×34×35	90		R 3/4
ZSTMB140-160	30×34×35	140		R 3/4

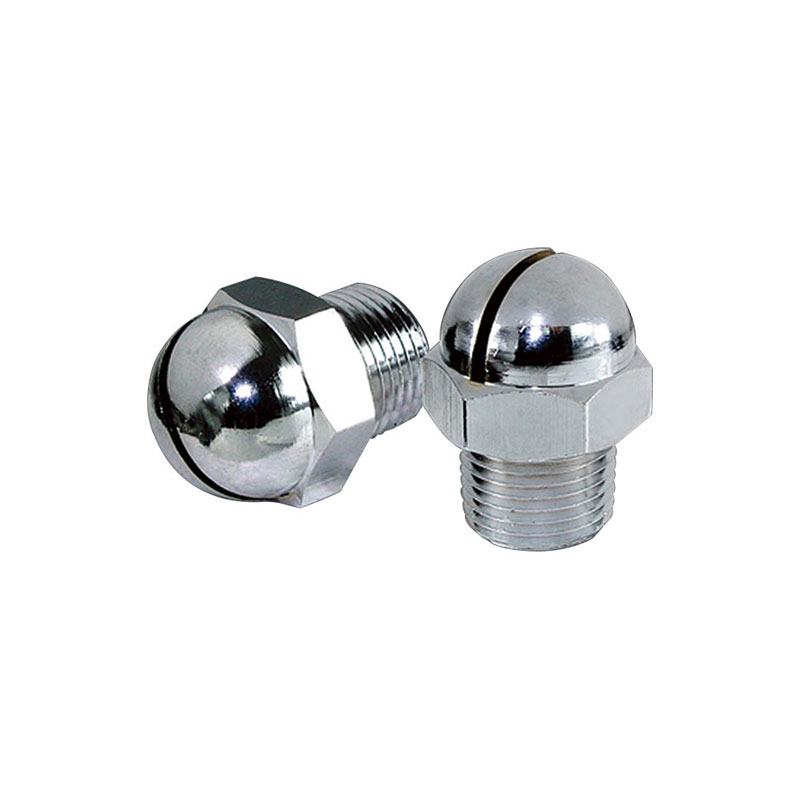

Water curtain nozzle ZSTMC

Model specification	Size(mm)	Flow Coefficient	Spray angle(°)	Take over thread
ZSTMC40-160	25×28×42	40	160±10	R 1/2
ZSTMC45-160	30×34×54	45		R 3/4
ZSTMC60-160	42×48×72	60		R 1

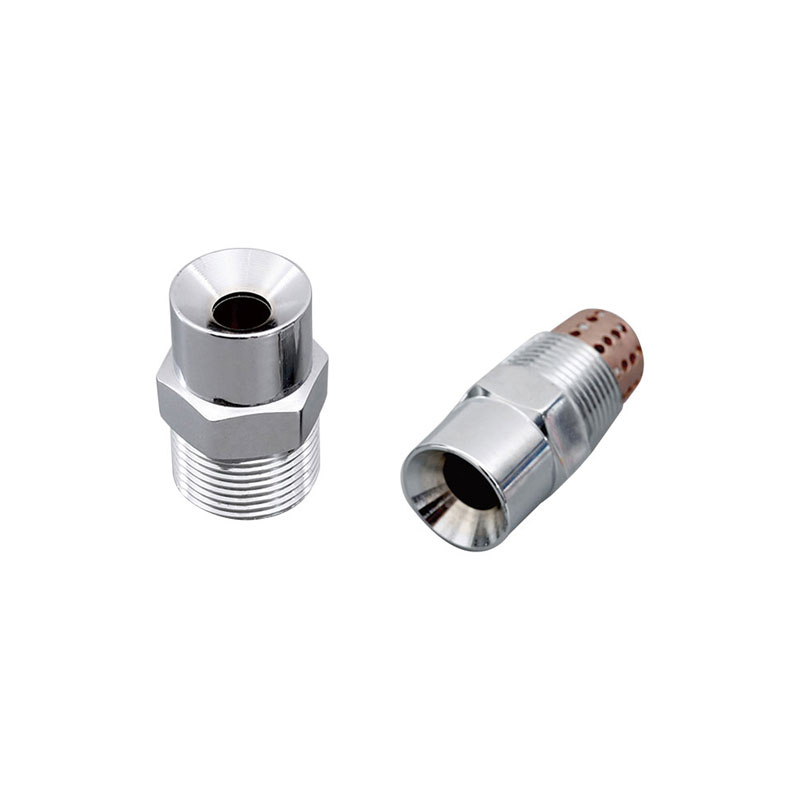

Water mist nozzle ZSTWB

Model specification	Flow Coefficient K	Spray angle	Take over thread	Types
ZSTWB-16-90	16	90° 120°	R 1/2	Centrifugal
ZSTWB-16-120	16
ZSTWB-21-90	21
ZSTWB-21-120	21
ZSTWB-27-90	27		R 3/4
ZSTWB-27-120	27
ZSTWB-34-90	34
ZSTWB-34-120	34
ZSTWB-42-90	42
ZSTWB-42-120	42
ZSTWB-53-90	53		R 1
ZSTWB-53-120	53
ZSTWB-68-90	68
ZSTWB-68-120	68

Water mist nozzle ZSTWC

The main component of the water mist system of the water mist nozzle, the pressurized water inside it, after collision, rotation, and stirring, sprays out small droplets, which has better cooling, suffocation and electrical insulation. It is widely used in industrial sites such as flammable, combustible gas, liquid processing and storage.
